4 Axis for 320~680Ton with long arm
Labor-saving, stable cycle, high safety, suitable for all types of horizontal injection molding machines of 60–4000 tons, used in the removal of finished products with higher appearance and precision
Description
Benefits & Features
Suitable for320-680T injection molding machine
● The modular production and high-strength aluminum alloy precision casting is used for the overall machine.
● The high-strength aluminum extrusion profiles are used for CNC machine-shaping arm to achieve the high speed, high rigidity, lower vibration, abrasion resistance
● More long service life with the help of the precision linear sliding rails.
● Applicable for various products with good universality.
Standard Function |
|
| Vacuum confirmation circuit | While part need to use suction cup by vacuum, one set for standard,(Extra one need cost) |
| Mold area movement | Robot can do horizontal movement freely in the mold area to take out the product with barb or others. |
| Release or grip in mold area | Can release part or runner in mold area after grip the runner or absorb the part. |
| Outside mold area stand-by | Robot can stand-by outside mold(outside the safety door) when robot end arm meets those mold obstructions. |
| Language selection | Language can be changed between Chinese and English. |
| Standard program sequences | Use with standard program sequence. |
| Conveyor interface | Control conveyor to run or stop. |
| Free edit mode | Freely programmable teach programs for flexible applications. |
| Out mold descent slow speed | Used to slow the speed when the product is taken out mold, to avoid accidents. |
| Grip pressure | You can have a precision adjustment of the grip pressure to ensure the products can be take out stability without any damage. |
| Quick exhaust | The exhaust valve at the air supply system is added to exhaust air quickly to release air pressure, it is used when a new mold will be changes to reset all actions, with this function an operator don’t need to do a improper operation(Remove the air supply system connector to exhaust) to avoid any damage. |
| Mid-Mold induction | Just after the mid-mold in right position signal confirmed, the robot second arm(assistant arm) will move down into mold area. |
| Optional Function | |
| Air nipper circuit | While cutting runner, use this function.(Scissor device is optional) |
Specs
|
Model |
Unit | KAW-1100-F | KAW-1300-F | KAW-1500-F |
| Arm type | Telescopic type | |||
| Vertical stroke | mm | 1100 | 1300 | 1500 |
| Crosswise stroke | mm | 1450 | 1550 | 1650 |
| Swing stroke | mm | 2300 | 2300 | 2500 |
| Drive system | X Y Z A Servo motor | |||
| Swing angel | degree | 270 | 270 | 270 |
| Max loading(with tool) | kg | 10 | 10 | 10 |
| Min take time | sec | 3 | 3 | 3 |
| Dry cycle time | sec | 9 | 9.5 | 9.5 |
| Working air pressure | kgf/c㎡ | 5-7 | 5-7 | 5-7 |
| Air consumption | NL/cycle | 25 | 25 | 25 |
| Power consumption | KVA | 1.5 | 1.5 | 1.5 |
| Power | AC | 220V 50-60HZ | 220V 50-60HZ | 220V 50-60HZ |
| Net weight | Kg | 260 | 270 | 280 |
| Gross weight | Kg | 290 | 300 | 310 |
| Product size | m | 2.30 *1.90 *1.80 | 2.30 *1.90 *1.90 | 2.50 *1.90 *2.00 |
| Packing size | m | 2.35 *1.95 *1.90 | 2.35 *1.95 *2.00 | 2.55 *1.95 *2.10 |
| Applicable IMM model | T | 250-320 | 380-480 | 530-680 |
*The parameters are for reference only, please contact your sales representative for details.

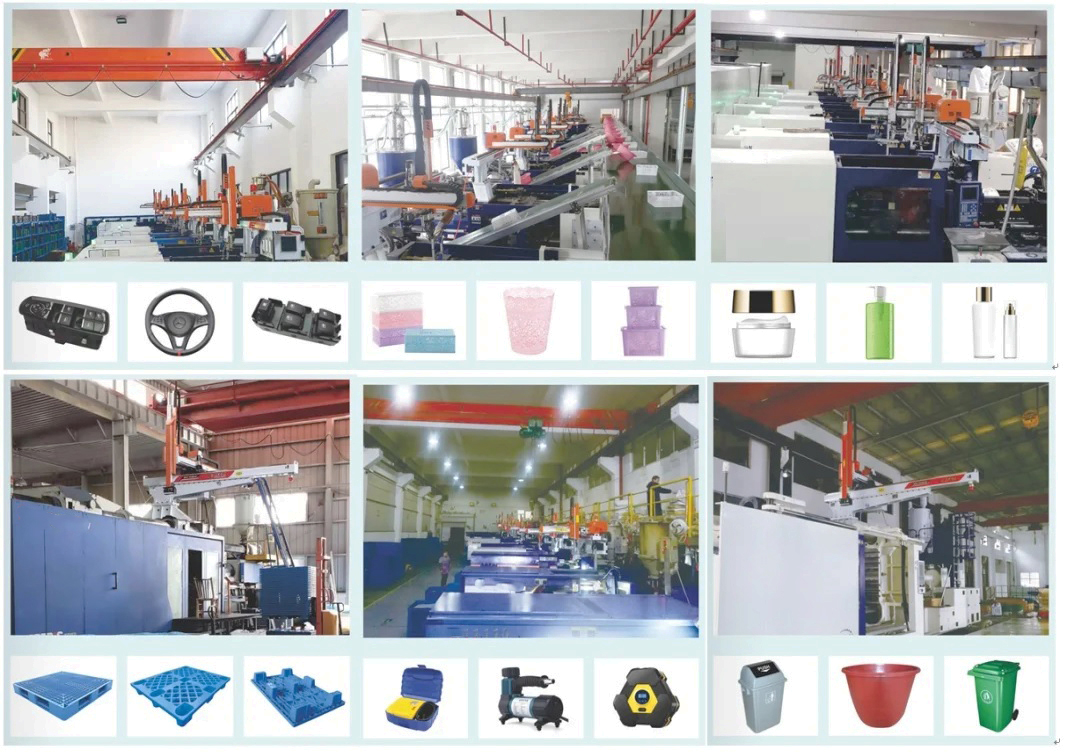

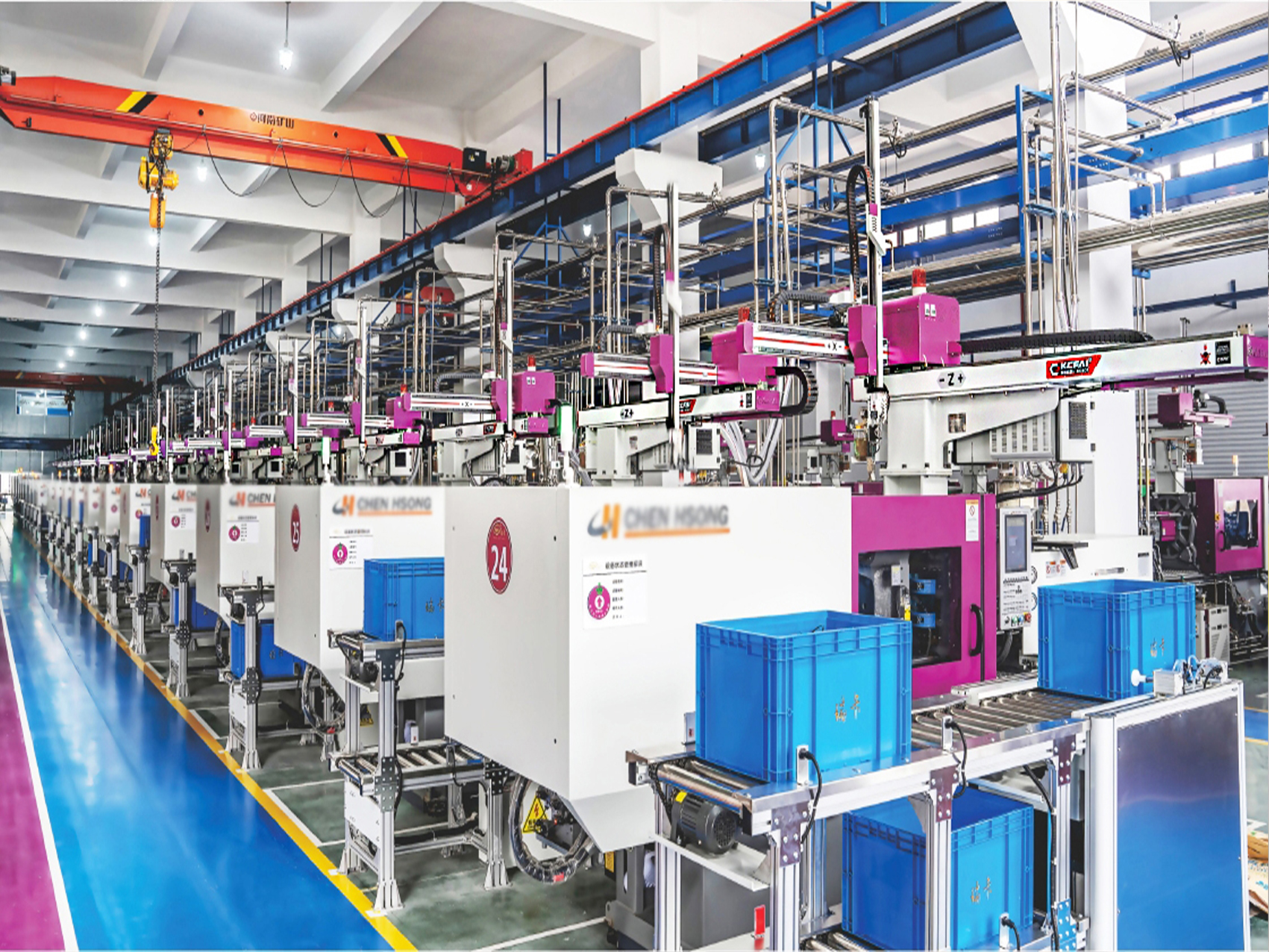

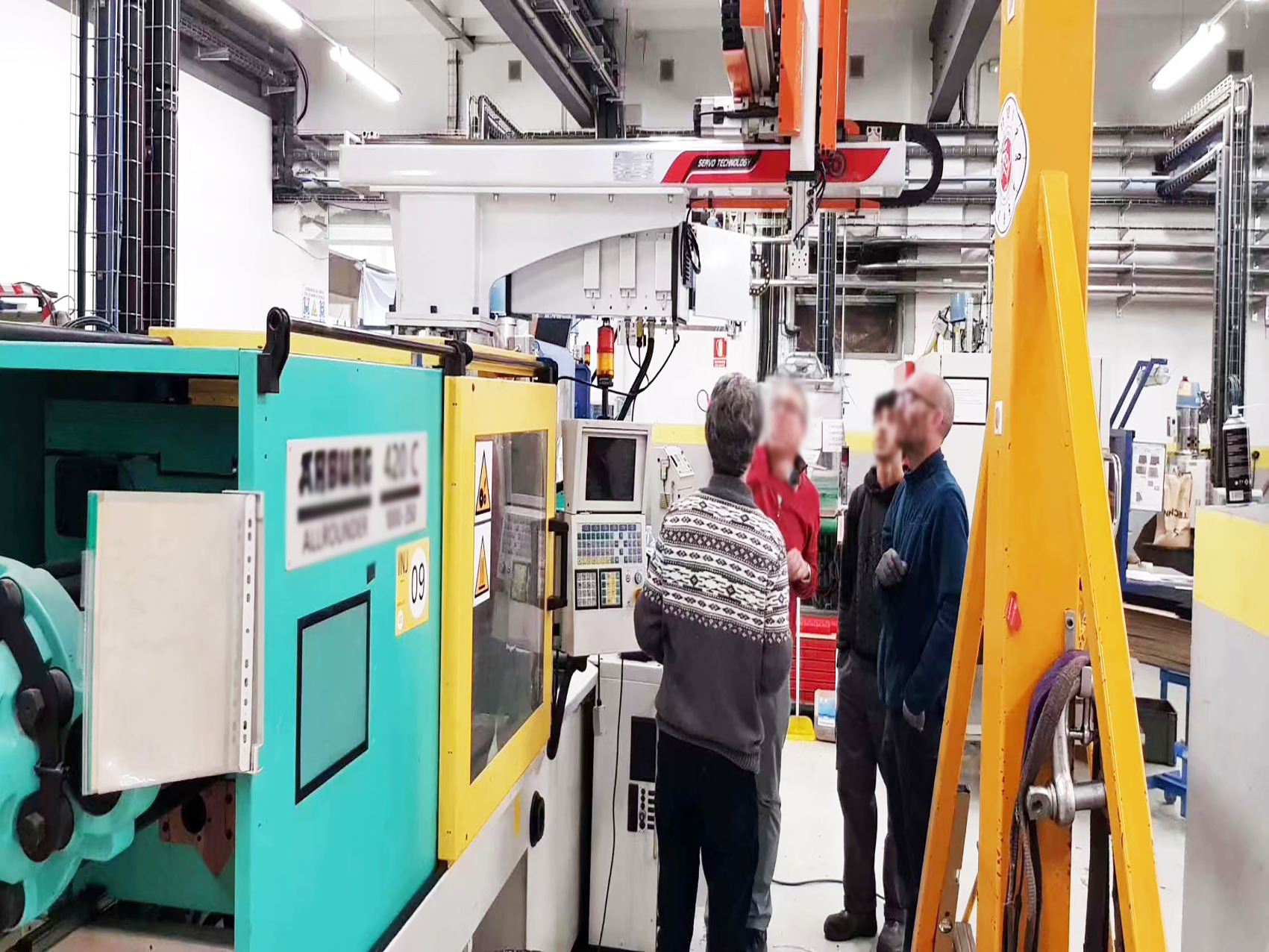

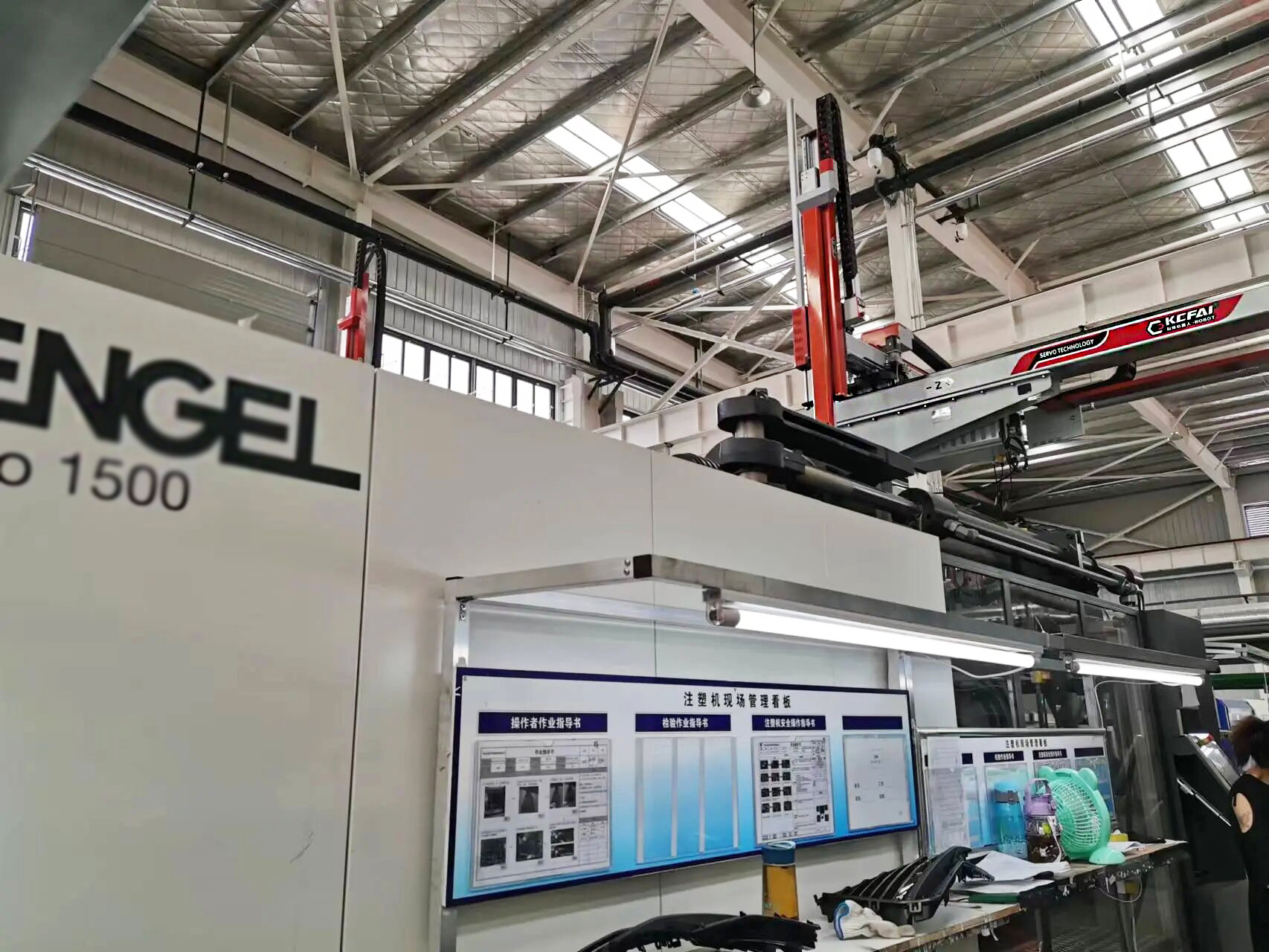

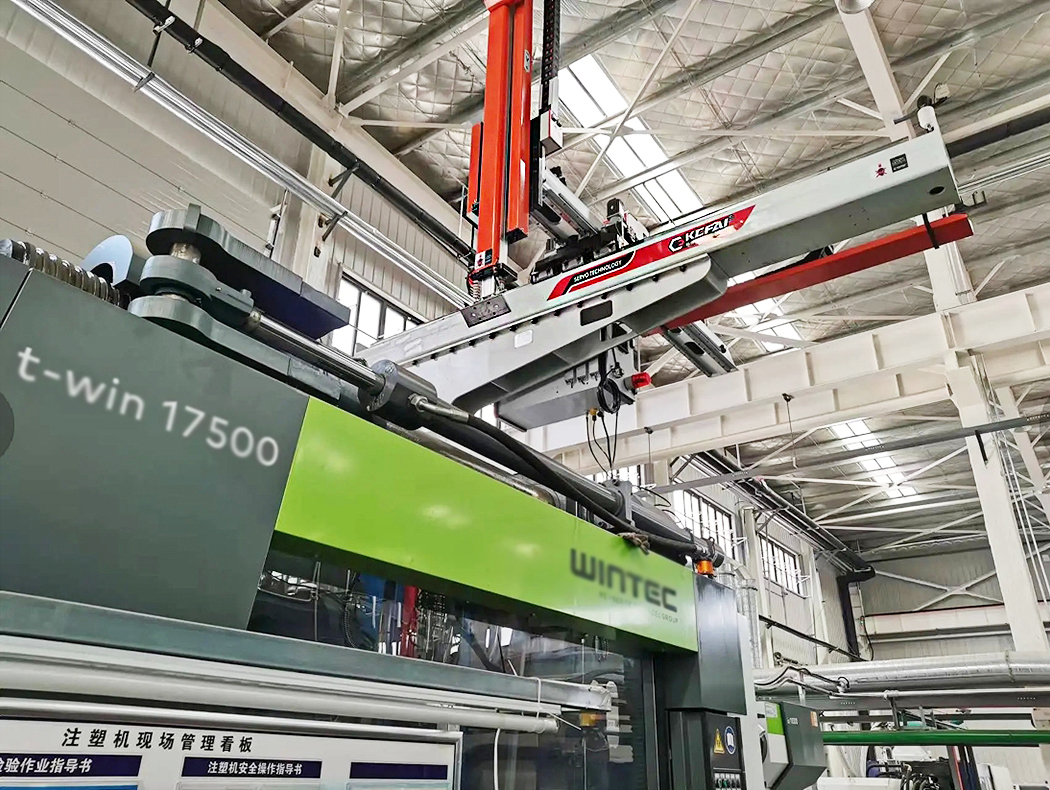

Cases
