Extrusion Blow Molding Machine D Tie Bar Series
D series machine is standard type. Double station, tie-bar clamping system. Double proportional valve controls flow and pressure. Operator friendly access, enengy saving, automatic lubrication system, easy maintenance, well-known components of high quality, stable running, easy to collect flash. Excellent choice for economical equipment. From one layerto five layer, with view-line, one diehead to six diehead , diehead coating with Titanium alloy or Chromium or Nitride chromium, servo motor, thickness controller, filter screen device, conveyor；leak tester and auxiliary machineries are optional.
Description
Features
Benefits

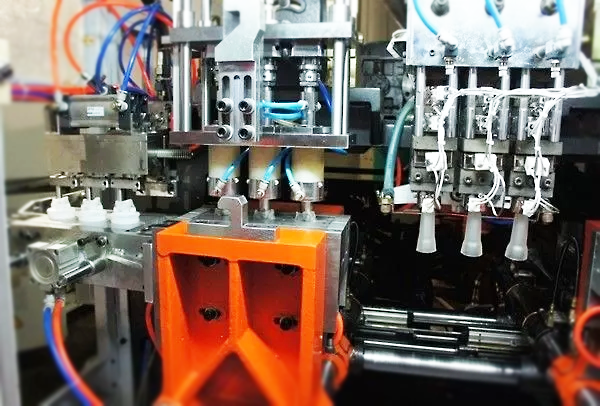

- EXTRUSION DIE HEAD:HIGHLY EXPERIENCED MULTI-CAVITY AND MULTI-LAYER TECHNOLOGY
Adopting with latest die head design, SANTSAI focuses on providing high quality and high precision self-manufactured extrusion die heads for customers.
- CONTROL SYSTEM:HIGHLY OPTIMIZED USER-FRIENDLY CONTROL TECHNOLOGY
All SANTSAI machines is equipped in standard with TECHMATION control system or optional with B&R control system. MOOG Parison Control is also optional based on different requirements.
- CLAMPING SYSTEM:HIGHLY DEVELOPED TIE BAR DESIGN
MP-D Tie-bar series employs direct-acting clamping system transferring the forces directly to the middle of the back platen and converting the same force to the front by tie bars and alignment rod. This tie-bar design offers quick mould change and convenient scrap collection.
- EXTRUSION UNIT:HIGHLY BALANCED EXTRUDER DESIGN
ALL SANTSAI machines adopt with variable frequency motor drive, high-efficiency screw and barrel design, close-loop temperature control and reliable, low noised gearbox.
- POST MOULDING PROCESSES AND FINISHING :FULLY AUTOMATIC PRODUCTION PLAN
SANTSAI professionally provide fully automatic production plan for customers including auto-deflashing, leakage testing, robotic arms and so on. All processes can be finished in line.
Standard Features:
- Auto Lubrication

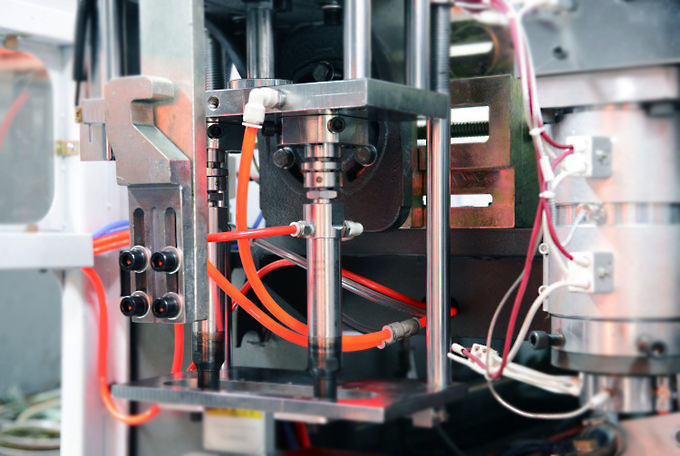

- Water Cooled Modular Blow Pin
- Hot Wire Cutting
- Positioning Hole For Quick Mold Change
- Adjustable Die head
- Linear Transducer
- FRL(Filter Regulator Lubricator) for Pneumatic

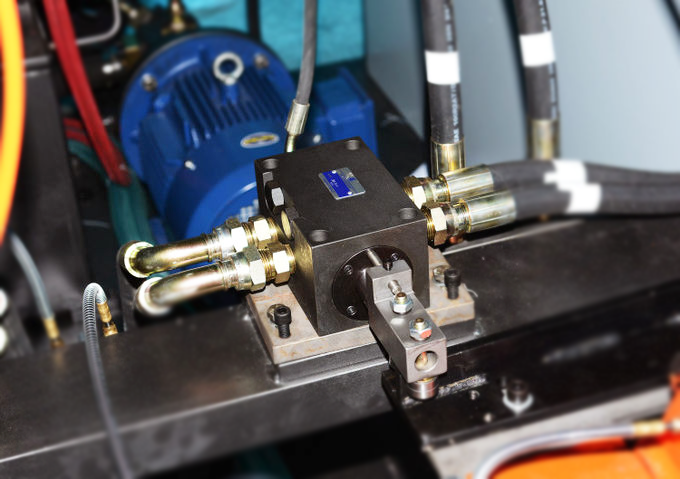

- Proportional Hydraulic System fro better control
- Swing and Adjustable Extrusion Platform
OPTIONAL FUNCTION

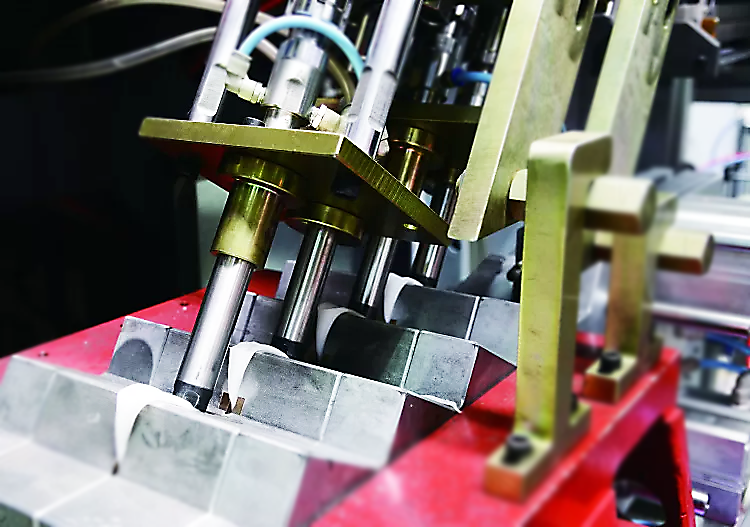

- COLD CUTTER
- DEFLESHING SYSTEM(MACHINE SYSTEM+STEEL BACK PLATEN AND PNEUATIC CYLINDER)
- HYDRAULIC DEFLESHING SYSTEM
- BOTTLE ROTATION TOP CUT OFFLINE
- BLADE NECK ROTATION CUTTING ONLINE INSTALLED/OFF LINE SEPARATE
- HYDRAULIC FILTER
- MECHANICAL FILTER
- LEAK TEST MC ON/OFF LINE

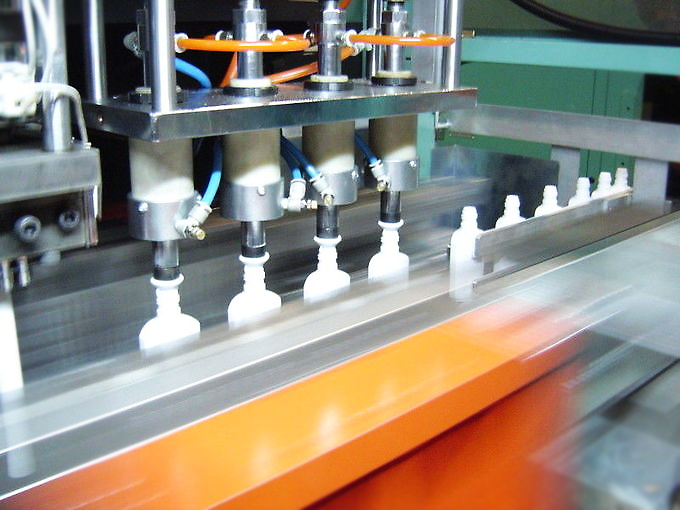

- ROBOT TAKE OUT
- IML(IN MOULD LABELING SYSTEM)
- 2 YEAR SPARE PARTS WARRANTY
- SCRAP MATERIAL CONVENYOR
- BOTTLE CONVENYOR AROUND THE MACHINE OR CUSTOM DESIGN
- POST COOLING SYSTEM
- SIDE WATER REGUAR 12IN-12OUT WITH FLOW CONTROL
- PARISON CONTROL SYSTEM MOOG 100PTS
- SPECIAL SCREW AND BARREL FOR SPECIAL MATERIAL
- SPECIAL PROGRA FOR SPECIAL PRODUCTS AND MOULD DESIGN
- LOADING DEVICE,MASTER BATH MIXING DEVICE
Specs
STS Machine Model |
Unit |
55D |
70D |
80D |
| General Specification | ||||
| Capacity/Article Size | L | Up to 2 | Up to 5 | Up to 10 |
| No.of Dies | no. | 1,2,3,4 | 1,2,3,4,6 | 1,2,3,4,6,8 |
| Machine Dimension (L*W*H) | m | 2.87*2.14*2.28 | 3.6*2.2*2.36 | 4*2.3*2.5 |
| Total Weight | T | 3.5 | 5.5 | 8.2 |
| Clamping System | ||||
| Clamping Force | kN | 30 | 75 | 150 |
| Mould Dimensions(W*H) | mm | 360*300 | 430*470 | 520*460 |
| Platen Opening Stroke | mm | 120-350 | 180-480 | 220-620 |
| Toggle Stroke | mm | 230 | 300 | 400 |
| Extrusion Unit with Inverter Drive | ||||
| Scew Diameter | mm | 55 | 70 | 80 |
| Length/Diameter Ratio | L/D | 24 | 24 | 24 |
| Plasticizing Capacity(HDPE) | Kqh | 45 | 70 | 90 |
| Scew Heating Zone | no. | 3 | 3 | 4 |
| Scew Heating Power | kW | 10.1 | 14.1 | 19.6 |
| Fan Power | kW | 0.18 | 0.18 | 0.22 |
| Extruder Driving Power | kW | 11 | 18.5 | 30 |
| Extrusion Die Head | ||||
| Die Head Heating Zone | no. | 2 | 2 | 2 |
| Power of Die heating | kW | 4.2 | 6.5 | 13.5 |
| Energy Consumption | ||||
| Total Connected Load | kW | 33.34 | 49.14 | 74.98 |
| Power Of Electric Motor | kW | 7.5 | 9.5 | 11 |
| Air Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Average Power Consumption | kW | 23.9 | 28 | 35 |
| Average Compression Air Consumption | m^3/min | 0.8-1 | 1.2 | 1.5 |
| Average Cooling Water Consumption | L/min | 30 | 40 | 40 |
Cases
Application Category
Plastic Blow Molding machine for HDPE bottle
Plastic Blow Molding machine Reagent bottle with cavity 6 and automatic runner cutter
Plastic Blow Moluding machine for bottle
Injection Blow Molding Machine for house bottle with automatic labling
Blow molding machine for HDPE Shampoo bottle
