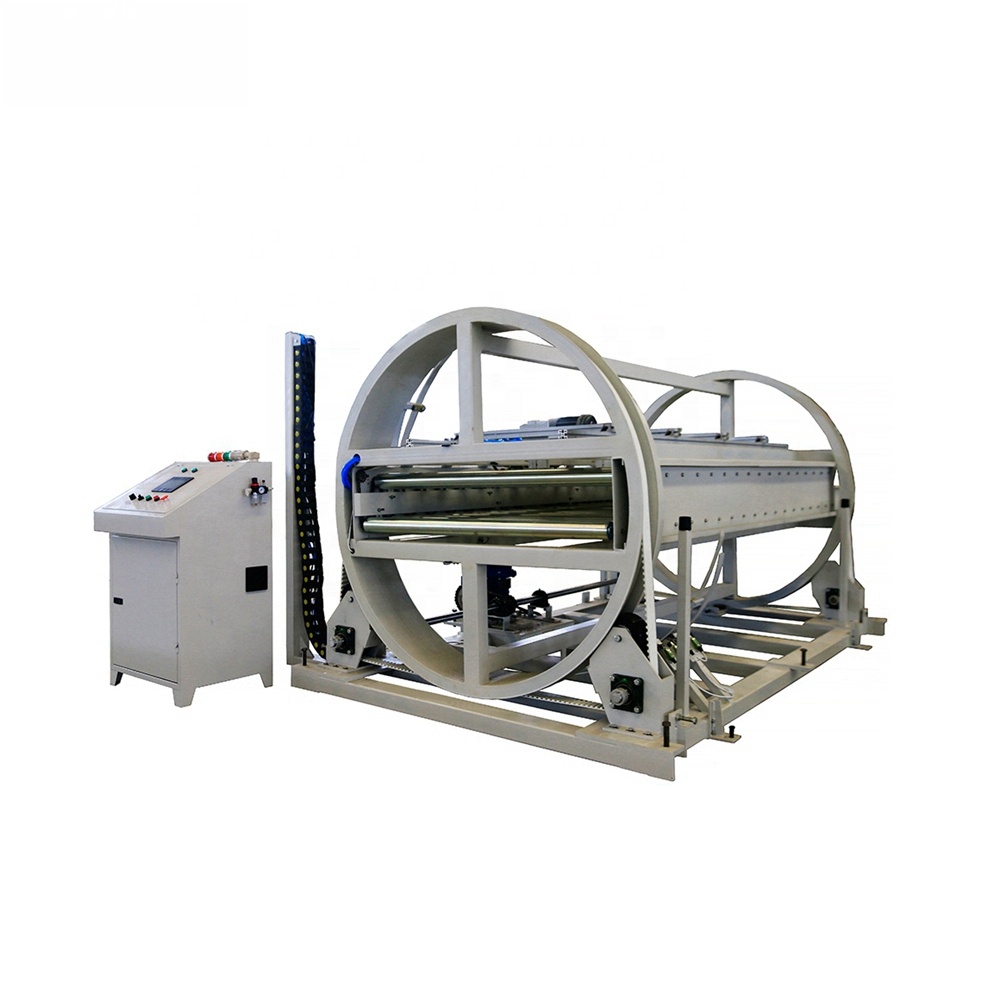

O Type Bundle Turnover
Capacity:5~50 Ton
O type bundle turnover is for the overall turnover of the whole stack of sheet metal, applicable to a variety of production of automotive, electrical manufacturing, machinery processing and other industries.Adopts PLC control, touch-screen interface operation, complete safety protection system and fault diagnosis system.
Description
Benefits & Features
O type bundle turnover is for the overall turnover of the whole stack of sheet metal, applicable to a variety of production of automotive, electrical manufacturing, machinery processing and other industries.Adopts PLC control, touch-screen interface operation, complete safety protection system and fault diagnosis system.
There are two different ways of clamping , pneumatic clamping and hydraulic clamping, both clamping can be automatically adjusted in the way of the clamping force to prevent the sheet -slide, the Pneumatic one is environment-friendly and do not pollute plate materials.
● Special equipment, reliable quality
● Force adjustable, wide application range
● Touch screen man-machine interface.
● Perfect fault diagnosis system
According to the logistics layout and the feeding way ,Product cn be customized.
Specs
| Max. Turnover Capacity （Ton） | 10 |
15 |
|
| Max. Turnover Length（mm） | 4000 | 4500 | |
| Max. Turnover Width（mm） | 2000 | ||
|
Structure |
o type |
||
| Clamping | Pneumatic | Hydraulic | Hydraulic |
| Dimension L*W*H（mm） | 9560*3700*3720 | 9560*3500*4220 | 10390*3500*4220 |
| Weight（T） | 23 | 24 | 25 |
1) The above technical parameters are for reference only and are subject to the actual device.
2) Customized Available.

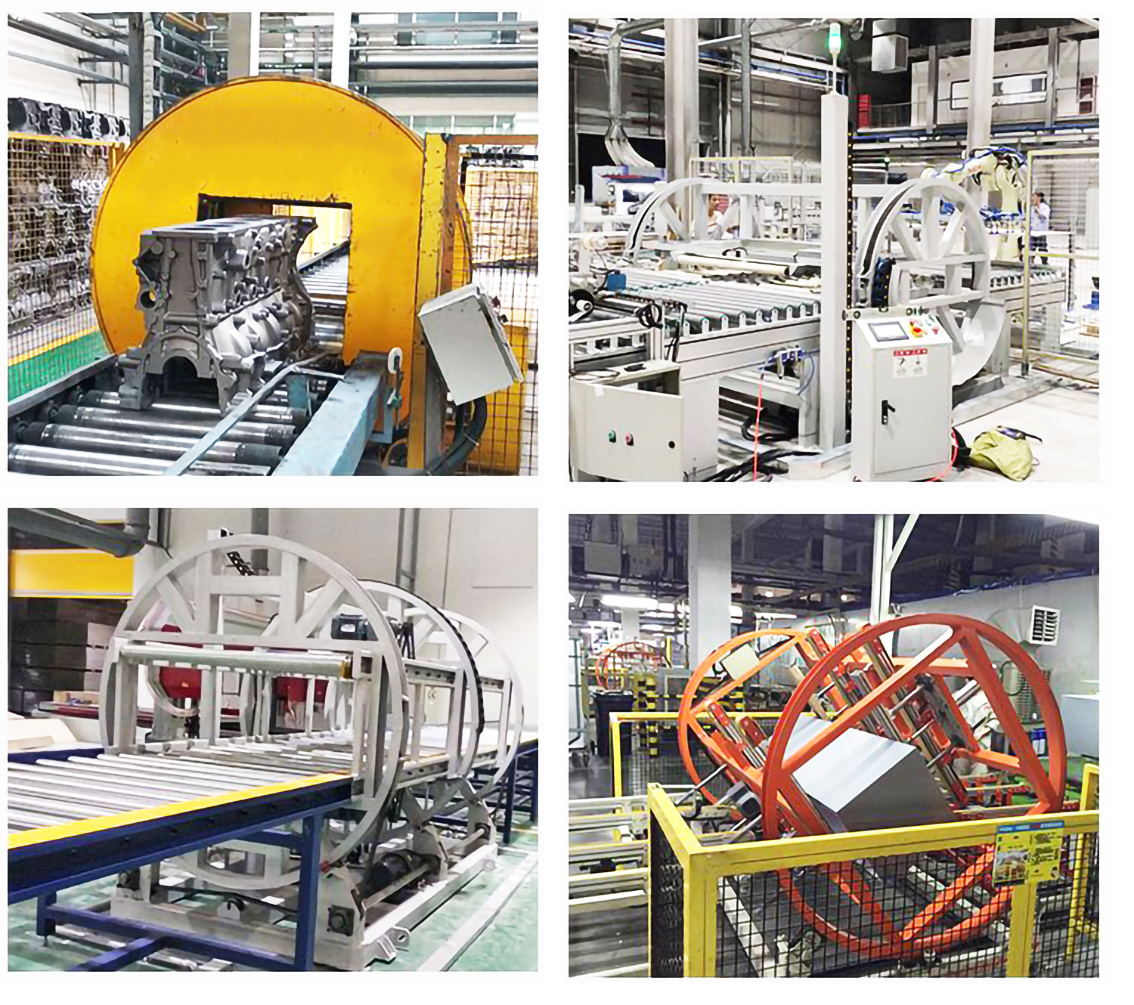

Cases
