Standard Vertical Injection
Capacity:250 Ton~450 Ton
Vertical injection molding machines can be precisely matched to your specific injection molding task, while maintaining the best ergonomic technology. A variety of flexible vertical injection molding as well as task-specific equipment packages are available, for example for thermoset or silicone processing.
Description
Benefits & Features

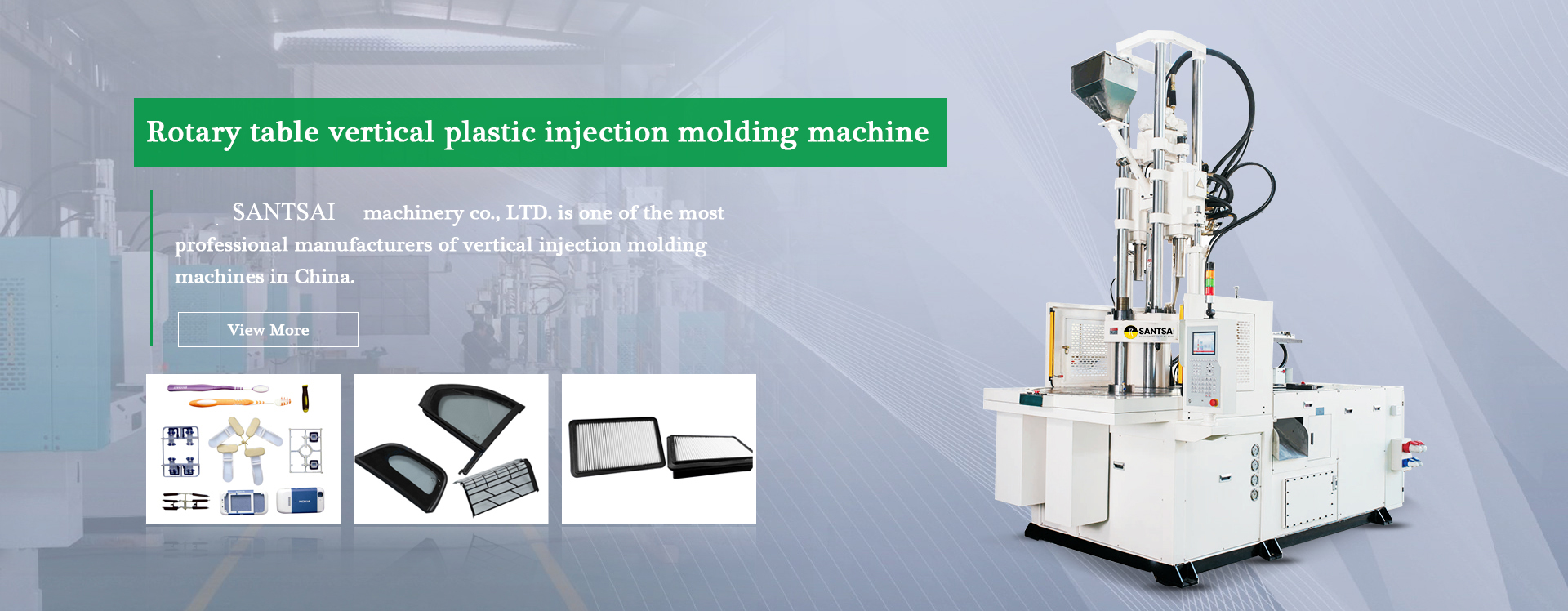

Vertical injection molding machines function the same as traditional horizontal injection molding machines, however they are orientated to operate on the vertical axis. Vertical injection molding machines often incorporate a shuttle or rotary table, allowing loading and demolding within the machines cycle time.
SANTSAI vertical injection molding machines can be precisely matched to your specific injection molding task, while maintaining the best ergonomic technology. A variety of flexible vertical injection molding as well as task-specific equipment packages are available, for example for thermoset or silicone processing.
• Vertical clamping, vertical injection, safe and prevent mould from weigh, it fit for inserts plastic molding.
• Multi station rotary table machine, （1 upper mold, 2 to 4 bottom mold）safe and time saving, increase production efficiency up to 50% to 100%.
Customized services for specific product and Sector, Such as
Two Color Machine
C Type Machine
Glass Fiber
Bakelite Machine
Zipper Machine
Horizontal clamping & vertical injection machine
Umbrella machine etc.
Specs
| Specification | ||||
| Model | Unit | DV-2500.2R | ||
| ( Injection Unit ) | Screw diameter | mm | Ф60 | Ф65 |
| Maximum injection pressure | Kg/cm2 | 1588 | 1353 | |
| Theoretical shot volume | cm3 | 706 | 829 | |
| Maximum shot weight（PS） | g/Oz | 630（22.2） | 740（26） | |
| Injection rate | cm3/sec | 189 | 221 | |
| ( Clamping Unit ) | Clamping force | ton | 250 | |
| Rotary Table Diameter | mm | 1800 | ||
| tie bar distance | mm | – | ||
| Minimum mold thickness | mm | 350/450（Can be customized according to customer requirements） | ||
| Opening stroke | mm | 450 | ||
| Open daylight | mm | 800/900（As required） | ||
| Ejector force | T | 7（Can be customized according to customer requirements） | ||
| Ejector stroke | mm | 145 | ||
| ( Others ) | Pump motor power | Kw | 22 | |
| Hydraulic system pressure | Kg/cm2 | 140 | ||
| Barrel heating power | Kw | 14.25 | ||
| Total wattage | Kw | 36.25 | ||
| Oil tank capacity | L | 850 | ||
| Machine weight (approx.) | T | 12.7 | ||
| Machine dimensions(approx.) | m | 3.9×2.3× 5.6 | ||
| Specification | ||||
| Model | Unit | DV-3000.2R | ||
| ( Injection Unit ) | Screw diameter | mm | Ф65 | Ф75 |
| Maximum injection pressure | Kg/cm2 | 1590 | 1194 | |
| Theoretical shot volume | cm3 | 928 | 1077 | |
| Maximum shot weight（PS） | g/Oz | 829（29.2） | 961（33.8） | |
| Injection rate | cm3/sec | 347.6 | 462.8 | |
| ( Clamping Unit ) | Clamping force | ton | 300 | |
| Rotary Table Diameter | mm | 1800 | ||
| tie bar distance | mm | – | ||
| Minimum mold thickness | mm | 450/550（Can be customized according to customer requirements） | ||
| Opening stroke | mm | 450 | ||
| Open daylight | mm | 900/1000（As required） | ||
| Ejector force | T | 8（Can be customized according to customer requirements） | ||
| Ejector stroke | mm | 165 | ||
| ( Others ) | Pump motor power | Kw | 30 | |
| Hydraulic system pressure | Kg/cm2 | 140 | ||
| Barrel heating power | Kw | 16.8 | ||
| Total wattage | Kw | 46.8 | ||
| Oil tank capacity | L | 1000 | ||
| Machine weight (approx.) | T | 18.6 | ||
| Machine dimensions(approx.) | m | 3.9×2.3× 5.8 | ||
| Specification | ||||
| Model | Unit | DV-3500.2R | ||
| ( Injection Unit ) | Screw diameter | mm | Ф65 | Ф75 |
| Maximum injection pressure | Kg/cm2 | 1590 | 1194 | |
| Theoretical shot volume | cm3 | 928 | 1077 | |
| Maximum shot weight（PS） | g/Oz | 829（29.2） | 961（33.8） | |
| Injection rate | cm3/sec | 347.6 | 462.8 | |
| ( Clamping Unit ) | Clamping force | ton | 350 | |
| Rotary Table Diameter | mm | 2000 | ||
| tie bar distance | mm | – | ||
| Minimum mold thickness | mm | 450/550（Can be customized according to customer requirements） | ||
| Opening stroke | mm | 450 | ||
| Open daylight | mm | 900/1000（As required） | ||
| Ejector force | T | 8（Can be customized according to customer requirements） | ||
| Ejector stroke | mm | 165 | ||
| ( Others ) | Pump motor power | Kw | 37 | |
| Hydraulic system pressure | Kg/cm2 | 140 | ||
| Barrel heating power | Kw | 16.8 | ||
| Total wattage | Kw | 53.8 | ||
| Oil tank capacity | L | 1100 | ||
| Machine weight (approx.) | T | 25.3 | ||
| Machine dimensions(approx.) | m | 4.4×2.7× 6.2 | ||
| Specification | ||||
| Model | Unit | DV-4500.2R | ||
| ( Injection Unit ) | Screw diameter | mm | Ф65 | Ф75 |
| Maximum injection pressure | Kg/cm2 | 1590 | 1194 | |
| Theoretical shot volume | cm3 | 928 | 1077 | |
| Maximum shot weight（PS） | g/Oz | 829（29.2） | 961（33.8） | |
| Injection rate | cm3/sec | 347.6 | 462.8 | |
| ( Clamping Unit ) | Clamping force | ton | 450 | |
| Rotary Table Diameter | mm | 2000 | ||
| tie bar distance | mm | – | ||
| Minimum mold thickness | mm | 450/550（Can be customized according to customer requirements） | ||
| Opening stroke | mm | 450 | ||
| Open daylight | mm | 900/1000（As required） | ||
| Ejector force | T | 8（Can be customized according to customer requirements） | ||
| Ejector stroke | mm | 200 | ||
| ( Others ) | Pump motor power | Kw | 30+37 | |
| Hydraulic system pressure | Kg/cm2 | 140 | ||
| Barrel heating power | Kw | 19.55 | ||
| Total wattage | Kw | 86.55 | ||
| Oil tank capacity | L | 1400 | ||
| Machine weight (approx.) | T | 30.5 | ||
| Machine dimensions(approx.) | m | 4.6×2.5× 6.4 | ||
Cases
Application Category
LSR injection molding industry application
Maternal and baby industry: The safety and forming process of liquid silicone materials are non-pollution, and have been widely used in the production of silicone products such as nipples, pacifiers, teether , bottles, spoons, suckers, brushes and so on in the maternal and baby industry.
Medical industry: The good biological characteristics and high-quality forming technology of liquid silicone materials have been widely used in the silicone accessories such as catheter & the joint, gastric tube, laryngeal mask, mask, dental bracket, negative pressure ball, incision protective cover, balloon and so on in the medical industrial.
Electronics industry: The waterproof, elastic and high precision forming process of liquid silicone material has been widely used in the silicone parts such as joint waterproof seals, horn diaphragm, mobile phone case, watch belt, button, earphone and so on in the electronics industry.
Automobile Parts Industry: The high permeability and high efficiency production process of liquid silicone material has been widely used in the silicone accessories such as LED perspective mirror,spark plug protector, wire harness seal ,sealing strips in automobile parts industry.
Labor Protection Industry: The soft touch, odorless and stable forming process of liquid silicone material has been widely used in the protective masks, gas masks, anti-dust and haze masks, noise-proof earplugs, protective mirror frames and other silicone parts in the labor protection industry.
Kitchen and sanitary industry: The production of liquid silicone material with high and low temperature resistance, non-toxicity and high qualified rate has been widely used in the production of cake mold, chocolate mold, stir-frying shovel, sprinkler, seal washer with pot cover and other silicone products in kitchen and sanitary industry.
