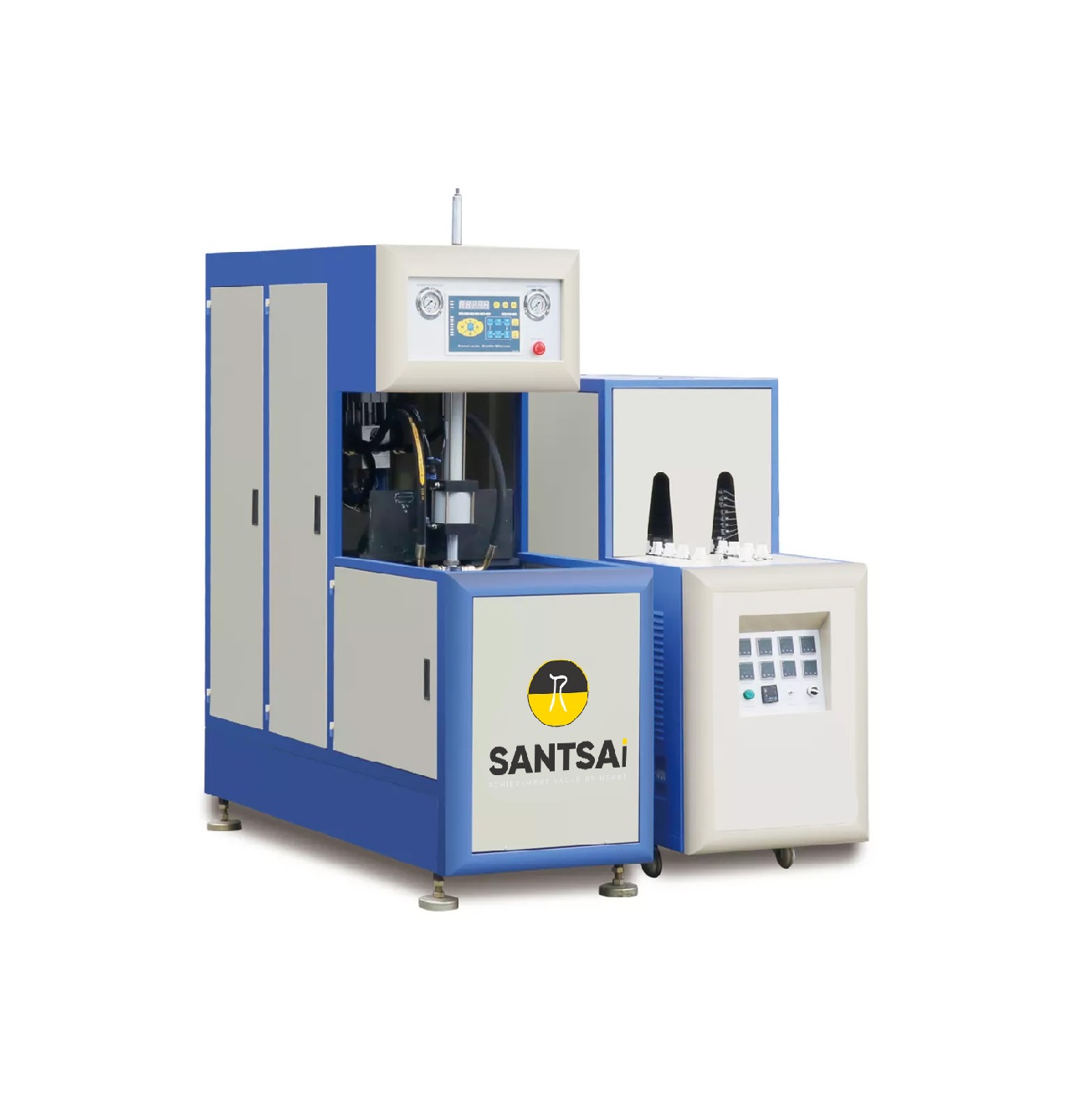

Semi-automatic blow molding machine
Semi-automatic, VOL:3L,7L; CY：500 ~1800Pcs/h
Description
Benefits & Features
• Double crank arm for mold locking reaches high mold-locking strength and flexible action
• Use PLC for control (time relay control optional), easy repair, low cost, with the time controllable accurately in 0.01s..
• The gas circuit consists of moving and blowing so as to satisfy the different air demand of them .
• The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even, quick and reliable.
• Every heating lamp has independent temperature control device, to get ideal preform heating effect
• The direction of the heating lamp is adjustable upon different preforms.
• Only need one operator, do not need special training. Simple installing and starting.
Specs
| Items | Unit | STSS-1 | STSS-2 | STSS-4 |
| Theoretical output | Pcs/hr | 500 | 900 | 1800 |
| Volume | L | 7.0 | 3.0 | 3.0 |
| Max. height | mm | 360 | 360 | 360 |
| Max. diameter | mm | 190 | 105 | 105 |
| Number of cavities | / | 1-2 | 2 | 2 |
| Mould plate dimension(LxH) | mm | 490×470 | 490×405 | 490×405 |
| Mould thickness | mm | 250 | 220 | 220 |
| Mould opening stroke | mm | 230 | 160 | 180 |
| Power | 220-380V/50-60Hz | 220-380V/50-60Hz | 220-380V/50-60Hz | |
| Total power | KW | 11 | 11 | 21 |
| Heating power | KW | 10 | 10 | 20 |
| Main body dimension(LxWxH) | M | 1.6×0.65×2.0 | 1.5×0.65×2.0 | 1.5×0.65×2.0 |
| Main body weight | KG | 650 | 550 | 550 |
| Preform Autoloader(LxWxH) | M | 1.4×0.60×1.4 | 1.4×0.60×1.4 | 1.8×0.60×1.4 |
| Preform Autoloader weight | KG | 300 | 300 | 350 |
